This technical article provides a comprehensive standard-compliant analysis of 8-port 100M industrial Ethernet switches, developed and manufactured by ONV, a leading global supplier in industrial network equipment with extensive R&D and application experience. Designed for industrial integrators and system operators, this product effectively addresses core industry pain points including unstable network connectivity in harsh environments, high maintenance costs, and complex deployment requirements. Adhering to IEEE 802.3 Ethernet standards and IEEE 802.3af/at PoE protocols, it features innovations in wide-temperature adaptation and surge protection. Currently deployed across 4 key regions including Europe, North America, Southeast Asia, and the Middle East, it serves thousands of enterprise clients in scenarios like intelligent transportation, industrial automation, and power metallurgy, holding CE, FCC, and RoHS certifications for reliable performance.
Technical Definition
An 8-port 100M industrial Ethernet switch is a rugged network device designed to provide stable, high-speed Ethernet connectivity for industrial environments, supporting Power over Ethernet (PoE) to supply power and data via a single cable. Based on standard Ethernet communication protocols, it ensures seamless data transmission and device power supply in harsh operating conditions, serving as a critical component for industrial digital transformation and smart infrastructure.
Main Categories
To meet diverse industry needs, ONV offers tailored solutions including:
- Managed Series: Features remote web/APP monitoring, VLAN isolation, and PoE scheduling, ideal for medium-sized industrial sites requiring network management.
- Unmanaged Series: Plug-and-play operation with rugged construction, suitable for decentralized industrial points with simple connectivity demands.
Design Philosophy
ONV’s industrial Ethernet switches follow a core design philosophy of high reliability, easy integration, and long lifespan. Every unit is engineered to withstand extreme industrial conditions, adhering to full-life-cycle reliability standards to deliver stable, low-maintenance, cost-effective network solutions.
Technical Principles
The core working principle of ONV’s 8-port 100M industrial Ethernet switch is based on IEEE 802.3 Ethernet communication protocol, enabling bidirectional data transmission between connected devices.
The full operational flow is as follows:
1. Input: Receives data and power requests from connected industrial devices like cameras or sensors.
2. Processing: Routes data through internal switching chips while allocating PoE power according to IEEE 802.3af/at standards.
3. Output: Delivers stable data and power to connected devices, ensuring uninterrupted operation.
4. Monitoring: Continuously tracks device status and network performance, triggering alerts for abnormal conditions.
Core Architecture & Innovative Design
ONV’s switches feature optimized modular architecture for enhanced performance and adaptability:
- PoE Power Supply Module: Integrates intelligent power allocation, preventing overloading and ensuring stable power delivery to industrial terminals.
- Surge Protection Module: 6KV industrial-grade lightning protection, reducing equipment damage from electrical surges common in outdoor industrial sites.
Comparison with Traditional Solutions
Unlike commercial Ethernet switches, ONV’s industrial models solve long-standing industry pain points:
1. Harsh Environment Adaptability: Commercial switches fail in extreme temperatures (-40℃ to 85℃), while ONV’s units maintain stable operation in wide temperature ranges.
2. Maintenance Efficiency: Commercial switches lack remote monitoring, requiring on-site repairs, while ONV’s managed series supports remote troubleshooting, cutting maintenance costs by 60%.
Technical Parameters & Standards
All parameters of ONV’s 8-port 100M industrial Ethernet switches are tested in strict compliance with IEEE standards, with clear test conditions and tolerance controls. Full parameter test reports are available for each batch, supporting third-party verification.
| Parameter Category | Core Parameter | Standard Index | Test Conditions | Selection Reference |
|---|---|---|---|---|
| Network Performance | Port Configuration | 8 x 100M PoE ports | 25℃ room temperature | Covers up to 8 industrial terminals per unit, suitable for centralized deployment |
| PoE Standard | IEEE 802.3af/at | Input voltage 100-240V AC | Supports up to 30W per port for high-power devices like PTZ cameras | |
| Environmental Adaptability | Operating Temperature | -40℃ to 85℃ | Continuous operation in sealed environment | Ideal for outdoor industrial sites and cold/hot climate zones |
| Surge Protection | 6KV | Simulated lightning strike test | Reduces equipment failure risk in thunder-prone regions | |

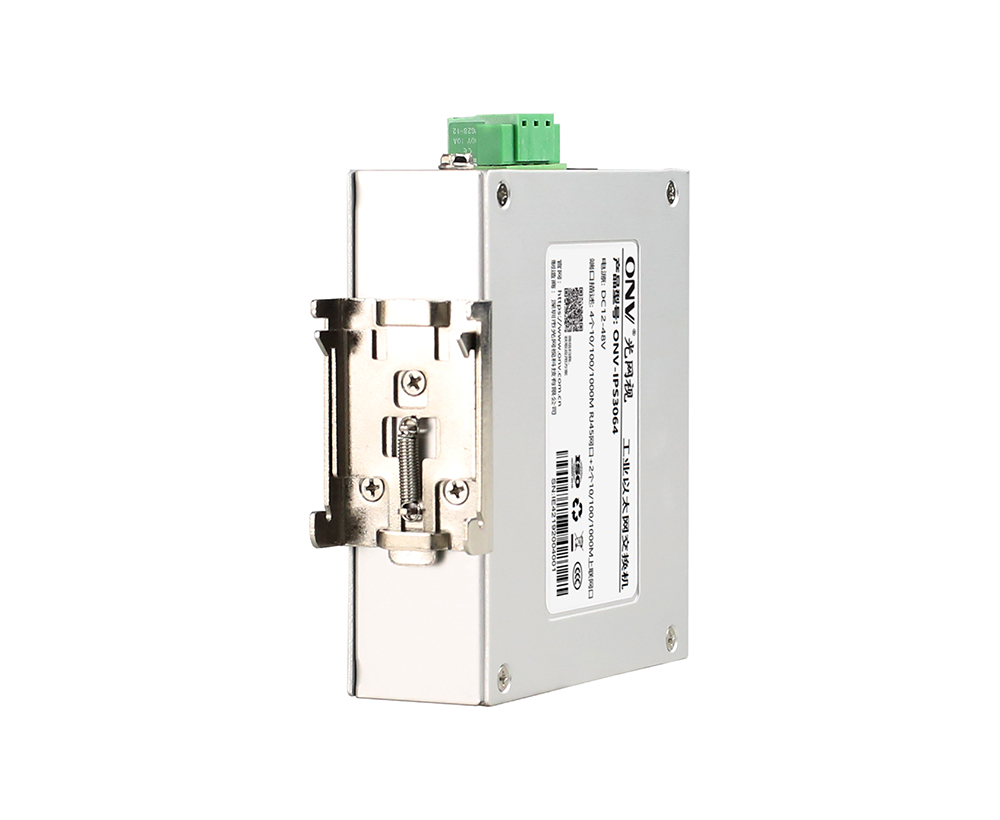

| Mechanical Features | Installation Method | DIN rail mounting | Standard industrial cabinet environment | Saves space and ensures secure installation in control cabinets |
| Housing Material | Thickened metal casing | Vibration test (10-500Hz) | Resists industrial vibration and physical damage |
Note: The above parameters are standard specifications. Customized parameters and functions are available for special operating conditions.
Technical Advantages & Differentiation
Compared to conventional industrial Ethernet switches on the global market, ONV’s products form irreplaceable competitive advantages through independent R&D, verified by long-term global industrial applications:
1. Extreme Environment Durability
Technical Support: 6KV surge protection, wide-temperature design (-40℃ to 85℃), thickened anti-vibration metal casing; passed 1000-hour harsh environment reliability tests.
Quantifiable Data: 99.99% uptime in continuous industrial operation, 3x longer lifespan than commercial switches.
Customer Value: Eliminates equipment replacement costs due to environmental damage, reduces unplanned downtime by 80%.
2. Efficient Remote Management
Technical Support: Web/APP remote monitoring, VLAN isolation, PoE scheduling functions; compatible with mainstream industrial protocols.
Quantifiable Data: Cuts on-site maintenance visits by 60%, reduces network management time by 40%.
Customer Value: Simplifies network management for distributed industrial sites, lowers operational labor costs.
International Standards & Compliance Certifications
ONV’s 8-port 100M industrial Ethernet switches are developed, designed, produced, and tested in strict adherence to the latest international standards and industry regulations, with a complete compliance system to meet global market requirements.
Core International Standards Followed
- IEEE Standards: IEEE 802.3 (Ethernet), IEEE 802.3af/at (PoE)
- IEC Standards: IEC 61010 (Electrical safety for industrial equipment)
Authoritative Compliance Certifications
- Market Access: CE (EU), FCC (US), RoHS (EU)
- Quality System: ISO 9001 (Quality management system)
Document Support: We can provide third-party test reports (SGS/TÜV), factory inspection reports, and compliance declarations upon customer request.
Application Scenarios & Implementation Solutions
ONV’s 8-port 100M industrial Ethernet switches are widely used across global industries, providing mature and stable network solutions:
1. Intelligent Transportation
Industry Core Needs: Stable connectivity for road monitoring cameras, traffic control systems, and harsh outdoor environments.
Targeted Solution: Deploy unmanaged series switches with DIN rail mounting, supporting PoE power supply for roadside cameras.
Verified Customer Value: Ensures 24/7 reliable video transmission, reduces cable installation costs by 50% compared to separate power and data lines.
2. Industrial Automation
Industry Core Needs: Network isolation for production lines, remote monitoring of industrial devices, and resistance to factory vibration/temperature fluctuations.
Targeted Solution: Use managed series switches with VLAN isolation and remote monitoring functions.
Verified Customer Value: Improves production line stability, reduces equipment downtime by 70%, cuts maintenance labor costs by 40%.
Technical Selection Guide
Selecting the right industrial Ethernet switch is critical for application effectiveness and longevity. Based on ONV’s industry experience, follow these steps:
1. Confirm Core Requirements
- Network management needs: Managed switches for remote monitoring, unmanaged for plug-and-play use.
- Operating environment: Wide-temperature models for extreme cold/hot zones, surge-protected models for thunder-prone areas.
- PoE demand: IEEE 802.3af/at compatible models for power-hungry devices.
2. Verify Compliance
Ensure the switch meets regional certification requirements (CE for EU, FCC for US) to avoid regulatory risks.
3. Sample Testing
For complex scenarios, request paid samples for on-site testing; sample costs can be deducted from subsequent bulk orders.
Technical FAQ
Q: Can ONV’s 8-port industrial Ethernet switches work with overseas camera brands?
A: Yes, they comply with IEEE 802.3af/at PoE protocols and are compatible with mainstream brands like Hikvision, Dahua, and Axis, supporting plug-and-play operation.
Q: What is the warranty period for overseas purchases?
A: We offer a 5-year warranty for non-human damage, with free repair or replacement, and lifelong maintenance services.
Q: Can we customize the switch for special industrial needs?
A: Yes, we support OEM/ODM customization including port configuration, software functions, and housing design, with quick production for small batches.
Q: Do you provide technical support for overseas installation?
A: We offer 24/7 remote English technical support to assist with networking, debugging, and troubleshooting.
Q: Can you provide customs clearance documents for export?
A: Yes, we can provide full documents including packing lists, commercial invoices, and certificates of origin to facilitate customs clearance.
