This technical article provides a comprehensive standard-compliant interpretation of industrial Ethernet switches, focusing on Optical Network Video Technologies (Shenzhen) Co., Ltd（ONV）’s industrial PoE switch offerings. As a professional industrial PoE switch original equipment manufacturer (OEM) with extensive R&D and industrial application experience, ONV is dedicated to advancing industrial communication technology. Our industrial PoE switches are innovative network devices tailored for industrial system integrators and enterprises, effectively solving pain points such as frequent device failures in harsh environments, high operation and maintenance costs, and inflexible network management. Strictly adhering to IEEE 802.3af/at/bt international standards, our products have achieved core breakthroughs in harsh environment adaptation and remote operation capabilities. To date, our switches have been applied in Europe, North America, Southeast Asia, the Middle East, and other regions, serving numerous enterprise customers in smart transportation, industrial automation, and energy sectors, and have obtained CE, FCC, RoHS, and CCC certifications, recognized as high-reliability technical solutions globally .
Technical Definition
Industrial Ethernet switches are high-reliability network communication devices designed for industrial environments, based on Ethernet communication technology, enabling stable data transmission and power supply for industrial terminals. As a core component in industrial communication systems, they have become indispensable technical support for industrial digital transformation and intelligent upgrading .
Main Categories

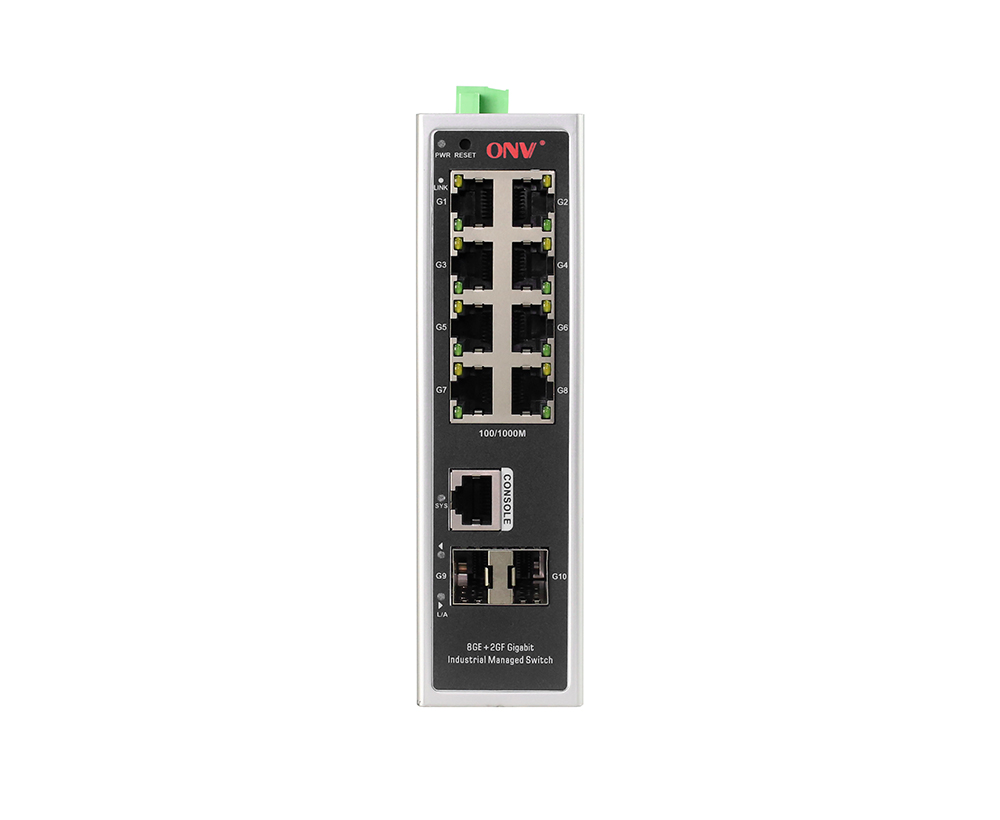

To meet diverse industry needs, ONV’s industrial PoE switches cover three main series, with customizable solutions for special scenarios: Non-managed series (e.g., ONV-IPS33032PF): Compact entry-level series, suitable for small industrial monitoring points, featuring 6KV lightning protection and wide-temperature adaptation ; Layer 2 managed series (e.g., ONV-IPS53064PFPM): Cost-effective management series, suitable for medium and small industrial networking, supporting VLAN isolation and remote web management ; Layer 3 managed high-power series: High-end control series, suitable for large industrial bases, supporting 60W bt PoE power supply and mobile remote operation .
Design Philosophy
Our products adopt a core design philosophy of high reliability, easy integration, and long service life, fully considering harsh industrial working conditions, and strictly following full-life-cycle reliability design standards to provide customers with stable, maintenance-free, and cost-effective technical solutions .
Technical Principles
The core working principle of ONV’s industrial PoE switches is based on Ethernet communication protocol combined with IEEE standard PoE power supply technology. The complete implementation link is as follows: Input industrial-grade DC power → PoE module converts it into power supply signals compliant with IEEE standards → Transmit data and power to industrial terminals via network cables → Real-time monitor device status and feed back operation data .
Core Architecture & Innovative Design
We have optimized the system architecture with modular design, enhancing product performance and adaptability: PoE power supply module: Equipped with 6KV lightning protection design, adapting to wide-temperature environments to ensure stable power supply for terminals ; Network management module: Supports VLAN isolation, QoS priority control, and remote operation, realizing refined network management .
Comparison with Traditional Solutions
Compared with commercial switches, our industrial PoE switches solve long-standing industry pain points: Commercial switches are prone to downtime in extreme temperature environments, while our products support -40℃ to 75℃ operation ; Commercial switches lack lightning protection, while our 6KV lightning protection design reduces equipment damage caused by lightning surges .
Technical Parameters & Specification Standards
All parameters of our industrial PoE switches are tested in strict accordance with IEEE and IEC standards, with clear test conditions and strict tolerance control. We can provide full parameter test reports for each batch of products and support third-party authoritative testing .
Parameter Category | Core Parameter | Standard Indicator | Test Condition | Selection Reference |
|---|---|---|---|---|
PoE Performance | Power Supply Standard | IEEE 802.3af/at/bt | 25℃ Room Temperature | Select based on terminal power requirements: af for 15.4W, at for 30W, bt for 60W |
Electrical Characteristics | Lightning Protection | 6KV | Simulated Lightning Surge Test | Recommended for outdoor or lightning-prone areas |
Environmental Adaptability | Operating Temperature | -40℃ to 75℃ | High/Low Temperature Chamber Test | Adapt to harsh industrial outdoor and workshop environments |
Mechanical Characteristics | Installation Method | DIN Rail Mounting | Standard Industrial Cabinet Test | Save cabinet space, suitable for industrial control cabinet installation |
Note: The above parameters are standard specifications for regular series. We can provide parameter customization and function adjustments according to customers' special working conditions and application requirements .
Technical Advantages & Differentiation
Compared with conventional industrial Ethernet switches in the global market, ONV’s products form irreplaceable core competitive advantages through independent R&D and technological innovation, fully verified in long-term industrial applications: 1. Harsh Environment Adaptability: Supported by 6KV lightning protection and wide-temperature design, our products have passed 1000-hour harsh environment reliability tests, reducing equipment failure rate by 80% compared to commercial switches, and lowering operation and maintenance costs for customers ; 2. Flexible Customization Capability: We offer full ODM/OEM services including appearance, hardware, software, and function customization, with sufficient self-developed production capacity to realize quick production even for small batches, meeting special scenario needs and shortening project cycles ; 3. Full-Life-Cycle Reliability: We provide a 5-year warranty, with free repair or replacement for non-human faults and lifelong maintenance support, ensuring long-term stable operation and reducing replacement costs .
Technical FAQ
Q: Are your industrial Ethernet switches compatible with mainstream security camera brands?
A: Yes, our switches comply with IEEE 802.3af/at/bt standards and are plug-and-play compatible with Hikvision, Dahua, Axis, and other mainstream security cameras, supporting long-distance power supply transmission .
Q: Do you support OEM/ODM customization for overseas customers?
A: We offer comprehensive ODM/OEM services covering appearance, hardware, software, and function customization, with sufficient self-developed production capacity to realize quick production even for small batches .
Q: What is the warranty policy for overseas customers?
A: We provide a 5-year warranty for all industrial switches, with free repair or replacement for non-human faults, and lifelong maintenance support to minimize project downtime losses .
